FP-1000 Fin Press

The Standard for High Production.

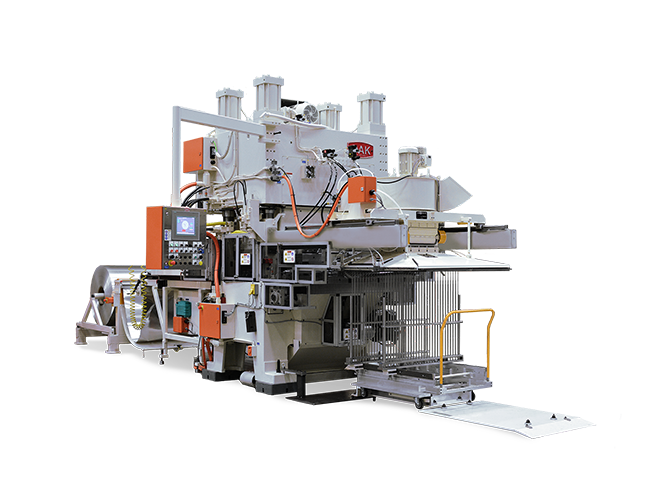

The OAK FP–1000 fin production line provides a high-production solution for manufacturing quality fins. This 112-ton (1,000kN) rated press delivers enough stamping power for the most demanding fin designs, while remaining flexible for quick die change options. The line features new elements in stock feeding, lubrication and fin collection all geared toward ease of operation and increased productivity.

Machine Facts

PRODUCTION

160 to 400 SPM*

FOOTPRINT

3.7 m x 10.1 m (12' x 33')

WEIGHT

~ 15,200 kg (33,510 lbs)

AIR SUPPLY

120 - 200 SCFM at 85 psi
(3.4 - 5.6 m3/min at 6 bar)

POWER SUPPLY

64 kW @ .80/.82 PF, 24 VDC Controls

Foundation information supplied upon request

TONNAGE

110 US Tons (1,000 kN)

FIN LENGTH

Up to 108" (2,742 mm)

FIN WIDTH

Up to 37" (940 mm)

SHUT HEIGHT

9" (229 mm) - 13" (330 mm)

STANDARD STROKE

1" (25 mm) - 2" (51 mm)

Advantages

Economic

  • 112 ton press in a compact design saves space.

  • High production capabilities.

  • Dynamically balanced for less vibration, therefore reducing maintenance.

  • Electronic feed reduces setup downtime thus increasing overall production.

Technical

  •  4-point load on slide ensures accurate load distribution to produce consistent fin dimensions across the die.

  • Hydraulic withdrawal system allows routine maintenance without removing the die from the press.

  • Adjustable shut height can be either hydraulic or mechanical.

  • Programmable Logic Controller (PLC) stops fin production automatically when a predetermined number of fins have been stacked.

User

  •  Can be modified to allow a maximum stroke length of 3" (76mm) if necessary.

  • Will operate high production fin dies.

  • Electronic feed requires less training for operator competency.

  • Perform maintenance without using a forklift or crane to remove the dies from the press.

  • Includes new features for stock feeding, lubrication and fin collection to increase ease of operation and productivity.

  • Program the fin length form the touch screen and control panel.

  • Operator touch screen controls can be configured for different languages.
