Environmentally Friendly and Versatile.

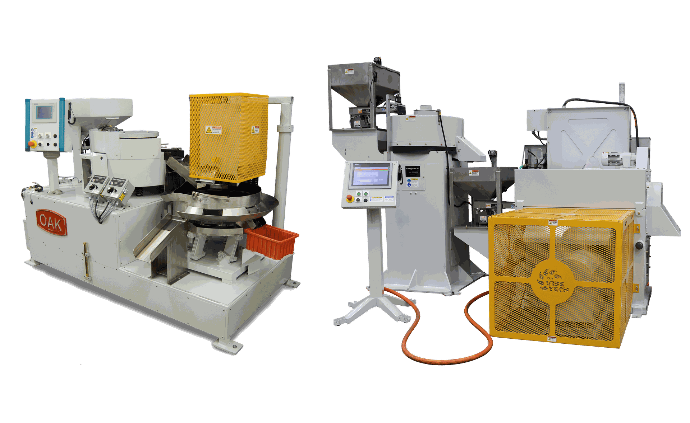

The M4 OAK Return Bend Cleaning Unit and M5 Medialess Return Bend Cleaning Unit are environmentally friendly and versatile machines. They clean multiple bend sizes, shapes, and materials requiring little operator supervision. The final product is delivered clean, dry, and ready to move into the next production process. The M4 unit is designed to be used with any standard return bender line while the M5 is designed to pare with a chipless return bender line.

Machine Facts

Machine Specifications

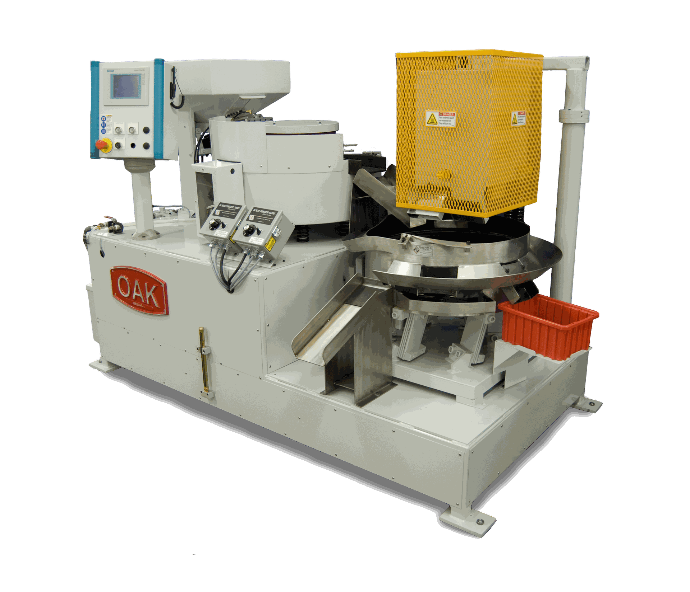

RCBU-M4

PRODUCTION

  • 10–15 minutes cleaning time

Material

  • .¼” (0.635cm) – 1¼” (3.175cm) OD

  • Copper or Aluminum

  • Return bends, crossover bends, straight lengths and elbows

FOOTPRINT

  • 4.27’ x 8.20’ x 5.91’
    (1.3 m x 2.5 m x 1.8 m)

WEIGHT

  • ~ 5,952 lbs (2,700 kg)

AIR SUPPLY

  • 10 ft3/min at 80 psi (0.3 m3/min at 5.5 bar)

WATER SUPPLY

  • 10 gal/hr at 30psi (44 ltr/hr)
    Gravity feed to sewer

POWER SUPPLY

  • 10 kW @ .80/.82 PF, 24 VDC Controls

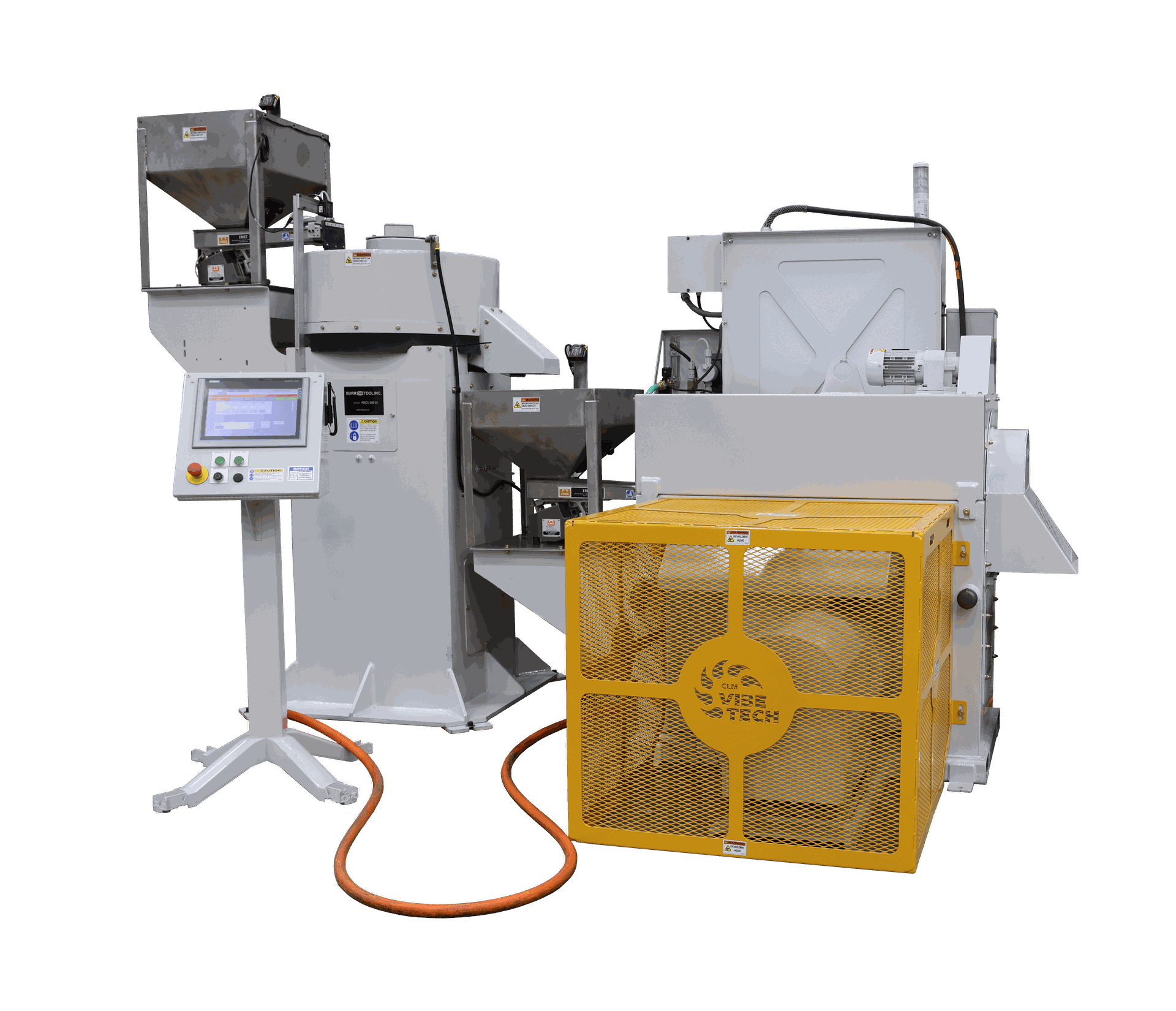

RCBU-M5

PRODUCTION

  • Up to 120 parts per minute batch throughput

Material

  • Copper or Aluminum

  • Recommended for chipless produced bends

FOOTPRINT

  • 11' x 7.2' x 6'
    (3.4 m x 2.2 m x 1.8 m)

WEIGHT

  • ~ 5,952 lbs (2,700 kg)

AIR SUPPLY

  • 10 ft3/min at 80 psi (0.3 m3/min at 5.5 bar)

WATER SUPPLY

  • 12 gal/hr at 30psi (45 ltr/hr)
    Gravity feed to sewer

POWER SUPPLY

  • 15 kW @ .80/.82 PF, 24 VDC Controls

Advantages

Economic

  • One machine cleans multiple parts and materials.

  • Requires very little operator supervision - freeing operators to perform other task.

  • No cleaning media reduces operation cost and changeover time. (M5 only)

Technical

  • Capable of cleaning elbows, straights, return bends, or crossovers of most sizes.

  • Can be hooked up to any standard bender line. (M4)

  • Can be hooked up to any chipless bender line. (M5)

  • First in first out concept allows batch cleaning for easy part changeover. (M5 only)

User

  • Creates ready to go parts - cleans, degreases, and dries.

  • Touchscreen allows easy access to machine controls.

  • More ergonomic height than previous cleaning machines.

  • Production line integration ready. (M5)

Materials & Media

Return Bend Cleaning Unit Product Brochure
Medialess Return Bend Cleaning Unit Product Video

Capital Sales

To request a quote or learn more about BOTI's Return Bend Cleaning Unit visit our capital sales page.
