OAK Size Machine (SM)
Size Return Bend Legs

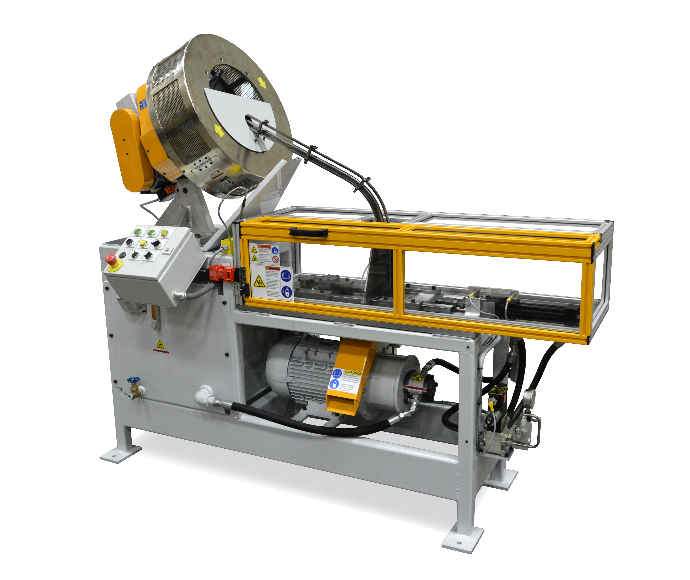

This machine is designed to properly size return bend leg ends. A hydraulically powered mechanism provides the necessary force for the operation which can include expansion or reduction of the leg ends. Return bends are automatically loaded into the work area from a rotary hopper to allow continuous operation.
Machine Facts
PRODUCTION
-
60 cycles per minute max
60 1/4" - 3/8"
50 1/2"
40 5/8"
60 cycles per minute max
60 1/4" - 3/8"
50 1/2"
40 5/8"
FOOTPRINT
≈ 3.94' x 4.92' x 7.88'
≈ (1.2 m x 1.5 m x 2.4 m)
≈ 2,000 Ibs (907 kg)
Air
2 ft 3/min at 80 psi
(0.3 m 3/min at 5.5 bar)
POWER
-
8 kW @ .80/.82 PF
-
24 VCD Controls
**Foundation information supplied upon request.
8 kW @ .80/.82 PF
24 VCD Controls
**Foundation information supplied upon request.
MATERIAL
- 1/4 dia - 5/8' dia
- Copper or Aluminum
- Return Bends or Crossover Bends
Advantages
Economic
-
Less expensive than a combination size and ring machine - perfect for applications where a ring is unnecessary.
- Adjustments are mechanical to avoid the unnecessary expense of additional technology.
Technical
-
SM is able to size return bends and crossovers, as well as heavy wall tubing.
- Size Machine can reduce or expand bend legs.
- Hydraulic powered when more force is required.
User
-
Gravity-fed from rotary hoppers for easy delivery of return bends into the Size Machine.
