Straight Tube Cutoff

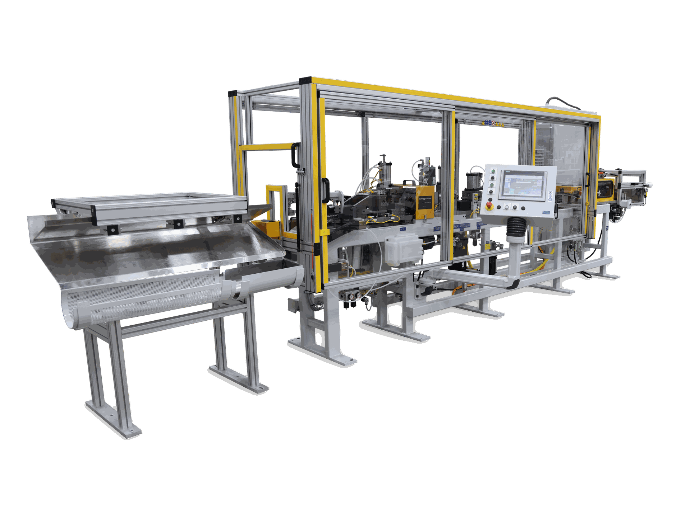

CNC Straight Tube Cutoff (STCO)
The OAK CNC programmable straight tube cutoff line from Burr OAK Tool is the most flexible straight tube production system ever developed for the tubing industry. Feed length, speed, and batch sizes are all accurately controlled through the touch screen interface, maximizing the productivity of your processes and personnel.
This hitch feed design incorporates a belt driven linear actuator that positions an air operated clamp to allow a maximum of 36" (914.4 mm) of stroke feed. The control of many aspects of the hitch feed can be determined by the operator at the touch screen interface. These include part length, number of parts required, and the actual feed speed.
The operator can enter up to five different lengths and the machine automatically repositions itself each time the correct batch number is achieved, thus reducing set-up time.
Machine Facts
PRODUCTION
-
6" (152.4 mm) long: 35 pcs/min
18" (457.2 mm) long: 30 pcs/min
36" (914.4 mm) long: 26 pcs/min
6" (152.4 mm) long: 35 pcs/min
18" (457.2 mm) long: 30 pcs/min
36" (914.4 mm) long: 26 pcs/min
FOOTPRINT
-
M5: 186" long x 40" wide x 72" tall
(4.72 m x 1.0 m x 1.82 m)
M6: ˜ 220" long x 60" wide x 72" tall
(5.58 m x 1.5 m x 1.82 m)
M5: 186" long x 40" wide x 72" tall
(4.72 m x 1.0 m x 1.82 m)
M6: ˜ 220" long x 60" wide x 72" tall
(5.58 m x 1.5 m x 1.82 m)
WEIGHT
-
M5: ~ 4,108 lbs (1,863 kg)
M6: ~ 4,410 lbs (2,000 kg)
M5: ~ 4,108 lbs (1,863 kg)
M6: ~ 4,410 lbs (2,000 kg)
POWER SUPPLY
-
29 – 38 kW @ .80/.82 PF, 24 VDC Controls
Foundation information supplied upon request
29 – 38 kW @ .80/.82 PF, 24 VDC Controls
Foundation information supplied upon request
SIZE
M5: 3/16" (4.75 mm) – 1 1/8" (28.57 mm) OD
M6: 3/16" (4.75 mm) – 1 3/4" (44.45 mm) OD
Wall Thickness: .010" (.25 mm) – .060" (1.52 mm)
MATERIAL
- Copper
- Aluminum
- Brass
- Steel
- Stainless Steel
- Polypro Coated
Advantages
Economic
-
10 minute tooling changeover.
-
CNC auto setup end forming means consistent end-forms with faster setup time.
-
Electric Servo motor and no hydraulics.
Technical
-
Sizes, cuts, straightens and end-forms in a single operation.
-
Cuts up to 36" lengths in one hitch.
-
Electric Servo Motor; hitch feed instead of air.
-
Magnetic cutter carrier enhances cutter blade performance.
-
Chipless cut.
User
-
Touchscreen controls for feed length, feed speed and batch size.
-
Tooling changes typically do not require tools.
-
Clear guarding provides an unobstructed view of the machine in operation while protecting operator
-
Guarding is mechanically locked during machine operation to ensure operator safety.
-
Operator touchscreen controls can be configured for different languages.
